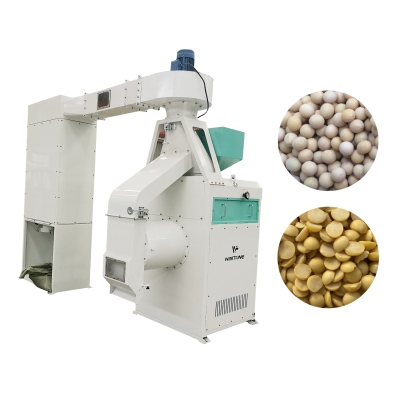

YTH35×2 Soybean/Peas Peeling Machine
The YTH35×2 Soybean Peeling Machine is a new type of soybean peeling equipment necessary in high-quality production process, which is suitable for oil processing factory and soybean product processing factory. This unit is mainly used for peeling soybeans, and peas. It can be used alone equipped with dust system and also used in bean processing line.
Working Pricinple
Put the cleaned soybeans or peas into the feeding hopper and then adjust the handwheel to maximize the gap between the grinding heads.Open the feeding gate to watch the peeling effect. Adjust the handle according to the direction indicated on the dashboard until the peeling quality of the product is satisfactory. When the processing is about to be completed, the adjustment handle should be adjusted to make the grinding core separate.
Technical Advantages
Compared with the traditional soybean peeling machine, this new type of equipment has the following characteristics:
1. This series of soybean peeling machine is a large-scale peeling machine dedicated for soybeans and peas;
2. The unit can be equipped with a large soybean dehulling and kernel production line, or it can be equipped with an independent dust collector to be used alone;
3. Low investment and high return: high peeling rate and output rate, and low breaking rate. 90% yield of finished products will increase your revenue;
4. Low energy consumption and large output, with a production capacity of 5-6 tons per hour, a 7.5kw motor can drive the entire equipment.
Finished Product
Technical Parameter
|
Type |
Capacity(t/h) |
Peeling Rate(%) |
Broken Rate(%) |
Power(kw) |
Spindle Speed(r/min) |
Weight(kg) |
Dimension(mm) |
|
YTH35×2 |
5-6 |
90-98 |
2-5 |
11-15＋3 |
850 |
1100 |
2900×1696.5×2904 |
